2174507-2
Manufacturer:
TE Connectivity
Mfr.Part #:
2174507-2
Datasheet:
Description:

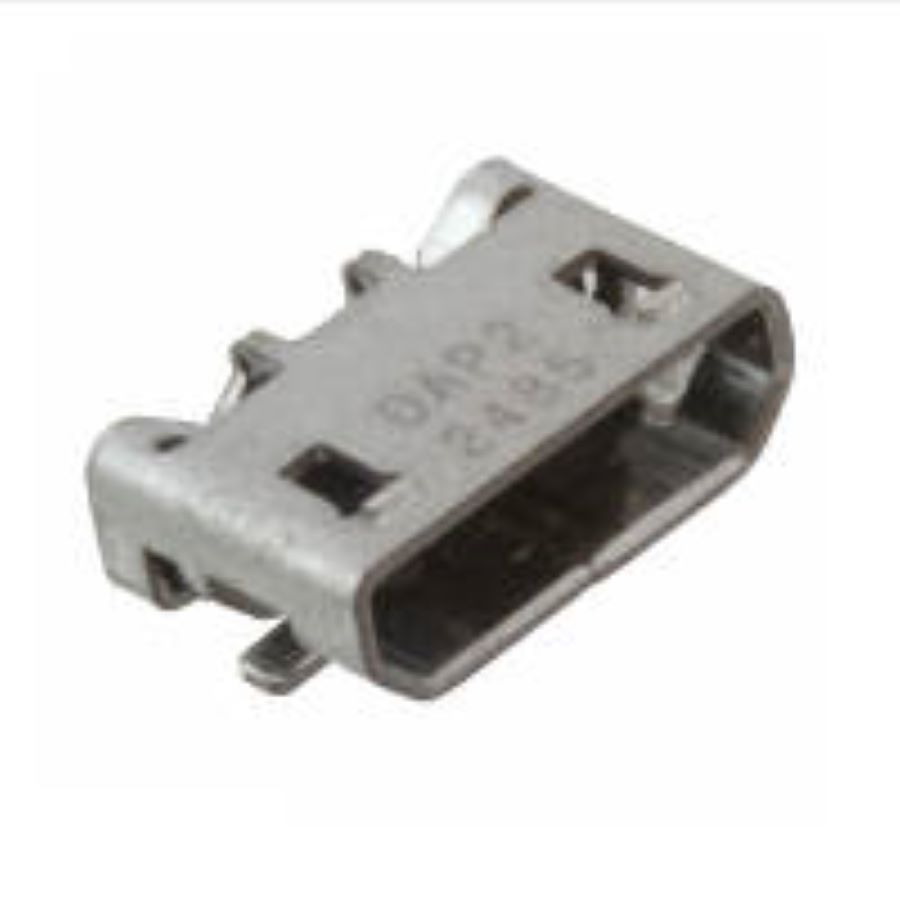

USB Connectors SMD/SMT USB - Micro B Receptacle USB 2.0
| Parameter | Value |
|---|---|
| Length | 7.8 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Packaging | Reel |
| RoHS | Compliant |
| Contact Plating | Gold |
| Pitch | 635 µm |
| Type | USB - Micro B |
| Number of Terminals | 5 |
| Current Rating | 0.5 A, 1 A, 1.8 A |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Gender | Receptacle |
| Number of Contacts | 5 |
| ELV | Compliant |
| USB Standard | USB 2.0 |
| Connector Type | Receptacle |
| Number of Positions | 5 |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Circuit Application | Power |
| Contact Current Rating | 1.8 A |
| Housing Color | Black |
| Plating | Nickel, Tin |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Max RMS Current | 1.8 A |
| Mounting Angle | Right Angle |
Stock: 3759
Distributors
pcbx
pcbxUnit Price$1.71499
Ext.Price$1.71499
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.71499 | $1.71499 |
| 10 | $1.45167 | $14.51670 |
| 25 | $1.25760 | $31.44000 |
| 50 | $1.21941 | $60.97050 |
| 100 | $1.18237 | $118.23700 |
| 300 | $1.15425 | $346.27500 |
| 500 | $1.12680 | $563.40000 |
| 1000 | $0.98231 | $982.31000 |
| 3000 | $0.96984 | $2909.52000 |
| 5000 | $0.95752 | $4787.60000 |
